Description
Product details

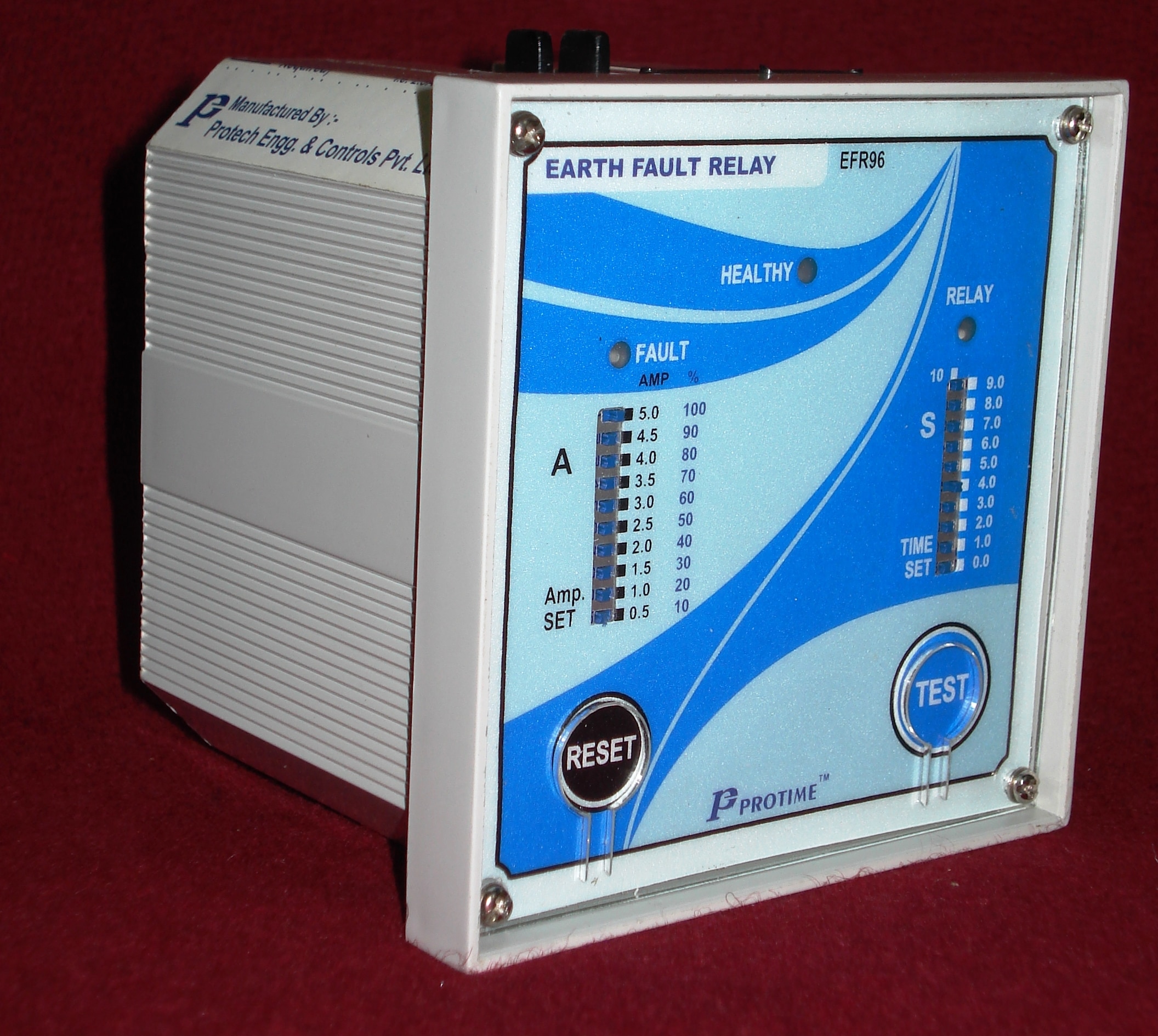

PROTIME's EFR96-1C relay is one of the most economic EFR with robust built in market. EFR96-1C senses Earth fault current for any equipment like L.T Panels Switch boards, Generators, Motors, Transformers, etc. The Fault current if goes above the selected range on the current dial, the relay energises after the time delay selected on the Time dial. The CT is to be connected externally as per diagram. The 'Test' button provides facility to stimulate the fault condition & thus checks the system tripping. The 'Reset' button provides manually resetting the relay. When link between A/M terminals is connected. Auto/ Manual Reset: MANUAL RESET: Connect link between Auto/Man terminals. AUTOMATIC RESET: Open the link between Auto/Man terminals. For more technical data please refer BROCHURE section (DS EFR96)
