Manufacturing test

The N96D-EFR/d senses total current passing from the DC system on Positive or Negative BUS & calculate leakage current passing through earth. The relay operates either during Over Load or when the leakage current goes above the selected value . It has Over Current Range from 20-120% & Earth Fault level setting from 1% to 10% of rated current sensor, for e.g. for 25A Sensor it shall be 5A to 30A for Over Load & 250mA to 2.5A for Earth Fault. It also has time delay setting from 1 to 10 sec for delay in relay operation after fault occurs. The relay has 1 C/O set of contacts each for +ve Earth Fault, Negative Earth Fault & DC Over Load. For more technical data please refer BROCHURE section (DS N96D-EFR/d)

DC Over Current cum Earth fault Relay

VIEW DETAILS

Protime's N22-PSR is designed with fool proof digital technology to monitor the Phase sequence of three phase System. When Phase Sequence of 3-ph. Supply goes wrong, relay changes its state after fixed time delay of 3 sec. It also indicates if any of the phase fails to Zero. It has indication for correct as well as wrong Phase Sequence. This relay is used for Phase to Phase Sensing. Auxiliary supply range is from 90 to 500V AC. It can work even in any one phase fail condition. For more technical data please refer BROCHURE section (DS N22-PSR)

Phase Sequence relay

INR 1400

VIEW DETAILS

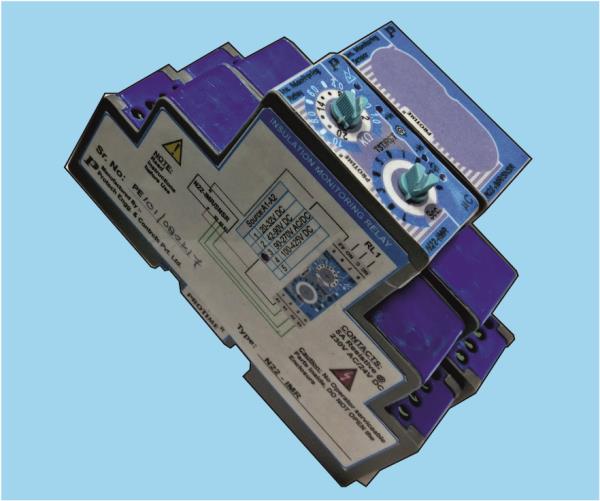

The relay senses the Insulation resistance of any unearthed system, Mostly suitable for DC Earth leakage protection for any equipment's like Switch boards, Rectifiers, Battery Chargers. It senses Resistance between Positive & Negative Terminals of DC System & Earth. The leakage current if any will be dependent on the Insulation resistance value between respective terminals, Higher the resistance , lower is the leakage current & vice versa. Lower resistance results in to loss of life or damage to equipment. PROTIME’s N22-IMR senses insulation resistance using Resistor Bridge principal & energizes relay when Resistance value goes below the value selected on the dialThe Relays are provided with user settable (0-10Sec) time delay . The relay is paired with suitable Sensor as per system voltage, & has a provision of connecting External Leakage resistance meter (Analog). Center infinity meter can be provided with calibrated scale to measure IR.

Insulation Monitoring Relay (DC ELR) N

INR 12500

VIEW DETAILS

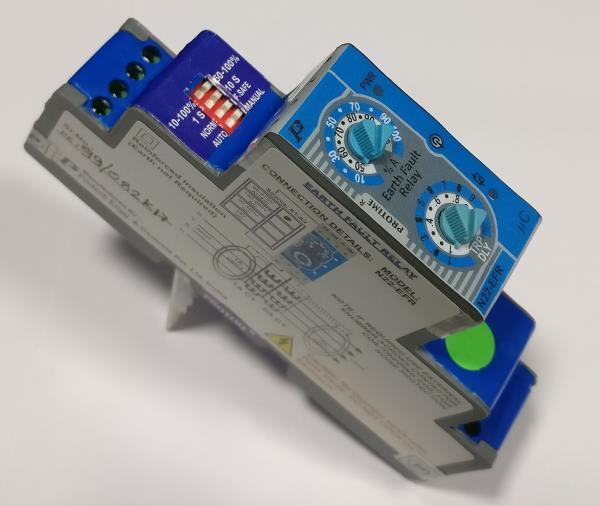

Protime's N22 series Earth fault relays monitors the current flowing through the Earth circuit through secondary of C. T which is in the earth path or all phase CT’s are connected parallel and connected to relay signal input. If Neutral is also available in circuit, a neutral CT also connected parallel. When current signal goes out of the range selected on the dial , the relay status will change . The relays are provided with time delays . For earth fault protection of alternator the C. T. Is connected between Alternator neutral & ground. The N22 relay has two selectable setting range for tripping. Also relay has wide auxiliary power supply range from 90 to 270V AC/DC. For more technical data please refer BROCHURE section (DS N22-EFR)

Earth fault relay-N22EFR

INR 2150

VIEW DETAILS

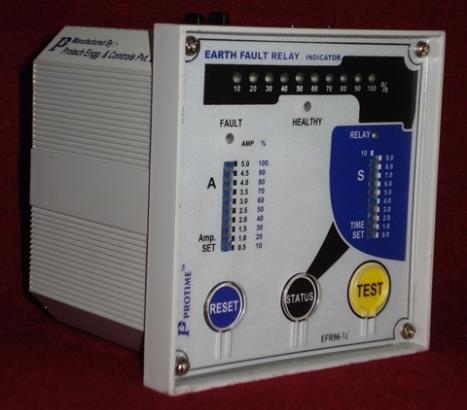

The N22 series Earth fault relays from PROTIME monitors the current flowing through the Earth circuit through secondary of C. T which is in the earth path or all phase CT’s are connected parallel and connected to relay signal input. If Neutral is also available in circuit, a neutral CT also connected parallel. When current signal goes out of the range selected on the dial , the relay status will change . The relays are provided with time delays . For earth fault protection of alternator the C. T. Is connected between Alternator neutral & ground. The N22 relay has two selectable setting range for tripping. Also relay has wide auxiliary power supply range from 90 to 270V AC/DC.The PROTIME EFR96-1/i senses Earth fault current for any equipment like L.T Panels Switch boards, Generators, Motors, Transformers, etc. The Fault current if goes above the selected range on the current dial, the relay energises after the time delay selected on the Time dial. The CT is to be connected externally as per diagram. The EFR96 series relay has an added advantage of fault current status indication on front by LED's. The LED's will glow when 'STATUS' button is pressed.The 'Test' button provides facility to stimulate the fault condition & thus checks the system tripping.The 'Reset' button provides manually resetting the relay. When link between A/M terminals is connected. Auto/ Manual Reset:MANUAL RESET: Connect link between Auto/Man terminals. AUTOMATIC RESET: Open the link between Auto/Man terminals. For more technical data please refer BROCHURE section (DS EFR96)

Earth Fault relay-EFR96 Series

INR 2150

VIEW DETAILS

The N22-EFR/d senses total current passing from the DC system on Positive or Negative BUS & calculate leakage current passing through earth if any. The relay operates when the leakage current goes above the range selected on dial provided on front. It has Fault level setting from 1% to 10% of rated current sensor, for e.g. for Sensor A (25A) it shall be=250mA-2.5A with resolution in 10 steps. It also has time delay setting from 1 to 10 sec for delay in relay operation after fault occurs. The relay has one change over set of contacts. For more technical data please refer BROCHURE section (DS N22-EFR/d)

DC Earth Fault Relay N22 EFR/d

INR 12500

VIEW DETAILS

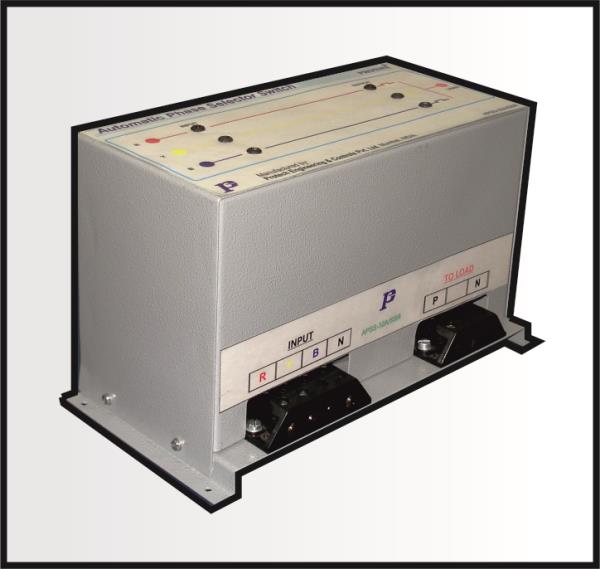

Automatic Phase Selector Switch

INR 4500

VIEW DETAILS

The N22 series DC Current relays monitors the current flowing through the circuit Shunt for DC Applications. The mV of Shunt is connected to relay signal input. When current signal goes out of the range selected on the dial , the relay status will change . The relays are provided with time delays . For DC Current protection the signal is taken from Shunt (Preferably in negative circuit path) The N22 relay has two selectable setting range for tripping. Also relay has wide auxiliary power supply range from 90 to 270V AC/DC. The Current relays are also provided with combined protection of Under & Over Current both settable separately. For more technical data please refer BROCHURE section (DS N22-CR)

DC Current Protection relay N22-CR/d

INR 2600

VIEW DETAILS

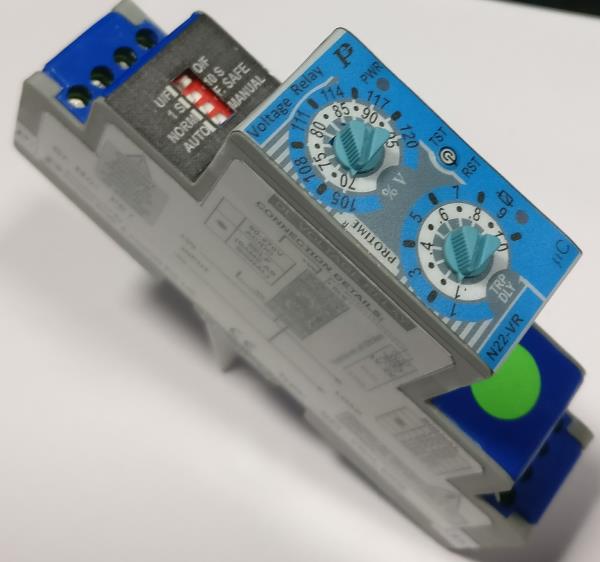

The N22 series AC Voltage relays monitors the voltage of the circuit. When voltage signal goes out of the range selected on the dial , the relay status will change . The relays are provided with time delays . The relay can be configured to use as under or Over Voltage Protection by user, which in turn automatically selects respective setting range for tripping. Also relay has wide auxiliary power supply range from 90 to 270V AC/DC. user can also define the type of operation, viz NORMAL or FAIL SAFE. Voltage Relays with combined protection of UV & OV also available. For more technical data please refer BROCHURE section (DS N22-VR)

single phase Voltage Relay

INR 2240

VIEW DETAILS

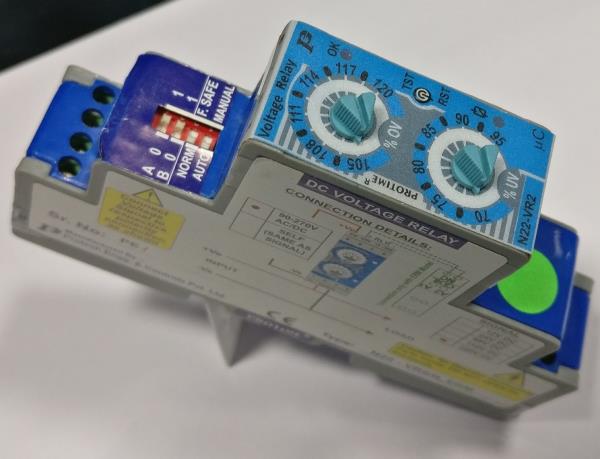

DC Voltage Relays

INR 2600

VIEW DETAILS

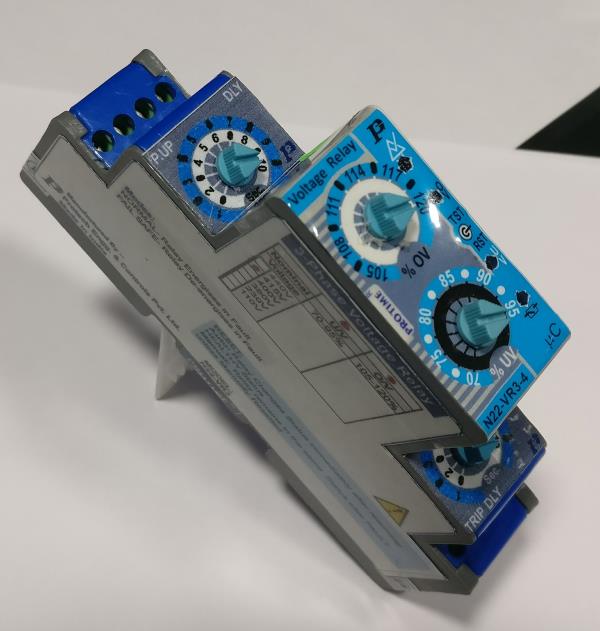

PROTIME’s new N22 range of voltage relays are futuristically designed voltage protection relays. New N22 relays are the result of it’s in depth research for user’s specific field requirements and flexibility to suit different applications.It is the only Most compact with ultra-flexible features with Micro controller based True RMS Measurement.It has Phase Sequence protection + 3 phase under and over voltage protection with selectable range + Asymmetry fault protection (Fixed 25% of Nominal Voltage).It is the only Voltage relay providing Smart identification U/V-OV fault condition in each phase.It also provides User selectable Auto/Manual Reset using programming modes and User settable separate Pick-up & Trip delay (1-10sec).Relay is designed with inbuilt Test and Reset facility and External Reset facility.It works with Wide supply range of 150-500 VAC Phase to Phase.For more technical data please refer BROCHURE section (DS N22-VR3)

3 phase voltage relay

INR 2250

VIEW DETAILS

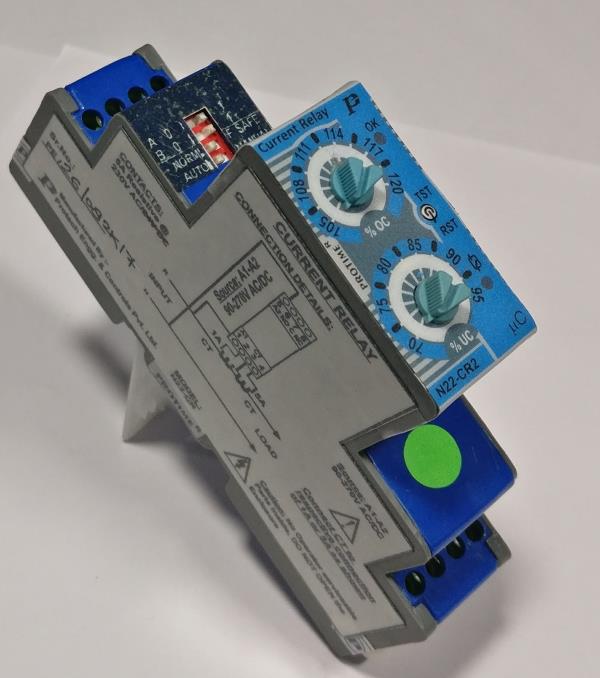

The N22 series Current relays monitors the current flowing through the circuit through CT or direct up to 5A / 1A. The secondary of C. T is connected to relay signal input. When current signal goes out of the range selected on the dial , the relay status will change . The relays are provided with time delays . The N22 relay has two selectable setting range for tripping. Also relay has wide auxiliary power supply range from 90 to 270V AC/DC. The Current relays are also provided with combined protection of Under & Over Current both settable separately. For more technical data please refer BROCHURE section (DS N22-CR)

single phase current protcetion relay
